シリーズ名 |
: |
C19~C21 |
|

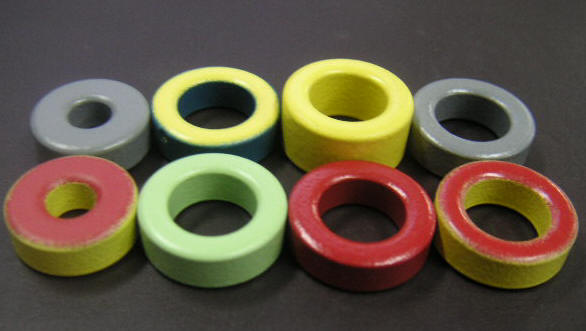

製品名 |
: |
Iron Powder CORE, RF |
|
環境物質情報 |
: |
RoHs Compliant |
|
|
|
|
製品状態 |
: |
生産中 |
|
Contact |
: |
チェ・ウソク |
|
添付資料 |
: |
|
|
|
| |
| Feature |
* Excellent Frequency Characteristic (Maximum
200MHz)
* Excellent Inductance Stablilty under high DC bias Cindition
* Good tempreature stability
* Inductors for High "Q"
* Relatively high Saturation Flux Density
* Large energy storage capacity
* Low core loss
* Cost effective design |
|
| |
| Specification |
size(OD x IDx Ht): 18.30x7.11x6.60mm
size(OD x IDx Ht): 18.50x7.11x6.60mm
size(OD x IDx Ht): 20.20x12.57x6.35mm
size(OD x IDx Ht): 20.40x12.57x6.35mm
size(OD x IDx Ht): 20.20x12.57x9.53mm
size(OD x IDx Ht): 20.40x12.57x9.53mm
size(OD x IDx Ht): 20.20x12.57x12.70mm
size(OD x IDx Ht): 20.40x12.57x12.70mm
|
|
| |
| Application |
* Output choke coil for SMPS
* PFC(Power Factor Correction) choke coil
* RF filter
* LC filter ( Low, High, Band pass)
* Pulse transformer
* Inverter
* DC/DC converter
* Conducted EMI noise filter
* Frequency control circuit by SCR
* Light dimmer choke coil
* Precision inductor |
|
| |
| " C19~C21 " 에 대한 검색결과 : 총 12개의 Parts No. 정보가 등록되어 있습니다. |
| Part Number |
Product Name |
AL Value |
Dimension |
| C21-K12,C21-L12,C21-M12,C21-N12 |
RF Carbonyl CORE |
K:25.0, L:60.0, M:6.8, N:15.8 |
20.40x12.57x12.70mm |
| C21-E12,C21-F12,C21-G12,C21-H12,C21-J12 |
RF Carbonyl CORE |
E:11.8, F:9.6, G:36.2. H:4.6, J:36.2 |
20.40x12.57x12.70mm |
| C21-A12,C21-B12,C21-C12 |
Iron Powder CORE |
A:92.0, B:83.0, C:79.0 |
20.20x12.57x12.70mm |
| C21-K9,C21-L9,C21-M9,C21-N9 |
RF Carbonyl CORE |
K:18.5, L:46.5, M:5.1, N:11.0 |
20.40x12.57x9.53mm |
| C21-E9,C21-F9,C21-G9,C21-H9,C21-J9 |
RF Carbonyl CORE |
E:8.9, F:7.2, G:29.5. H:3.5, J:29.5 |
20.40x12.57x9.53mm |
| C21-A9,C21-B9,C21-C9 |
Iron Powder CORE |
A:71.0, B:63.0, C:59.0 |
20.20x12.57x9.53mm |
| C21-K6,C21-L6,C21-M6,C21-N6 |
RF Carbonyl CORE |
K:11.5, L:31.0, M:3.2, N:7.4 |
20.40x12.57x6.35mm |
| C21-E6,C21-F6,C21-G6,C21-H6,C21-J6 |
RF Carbonyl CORE |
E:5.5, F:4.5, G:18.0. H:2.2, J:18.0 |
20.40x12.57x6.35mm |
| C21-A6,C21-B6,C21-C6 |
Iron Powder CORE |
A:46.0, B:42.0, C:39.5 |
20.20x12.57x6.35mm |
| C19-K6,C19-L6,C19-M6,C19-N6 |
RF Carbonyl CORE |
K:24.5, L:58.5, M:6.7, N:15.5 |
18.50x7.11x6.60mm |
| C19-E6,C19-F6,C19-G6,C19-H6,C19-J6 |
RF Carbonyl CORE |
E:12.8, F:9.4, G:36.0. H:4.5, J:36.0 |
18.50x7.11x6.60mm |
| C19-A6,C19-B6,C19-C6 |
Iron Powder CORE |
A:90.0, B:82.0, C:71.0 |
18.30x7.11x6.60mm |
|
 |
|
|
